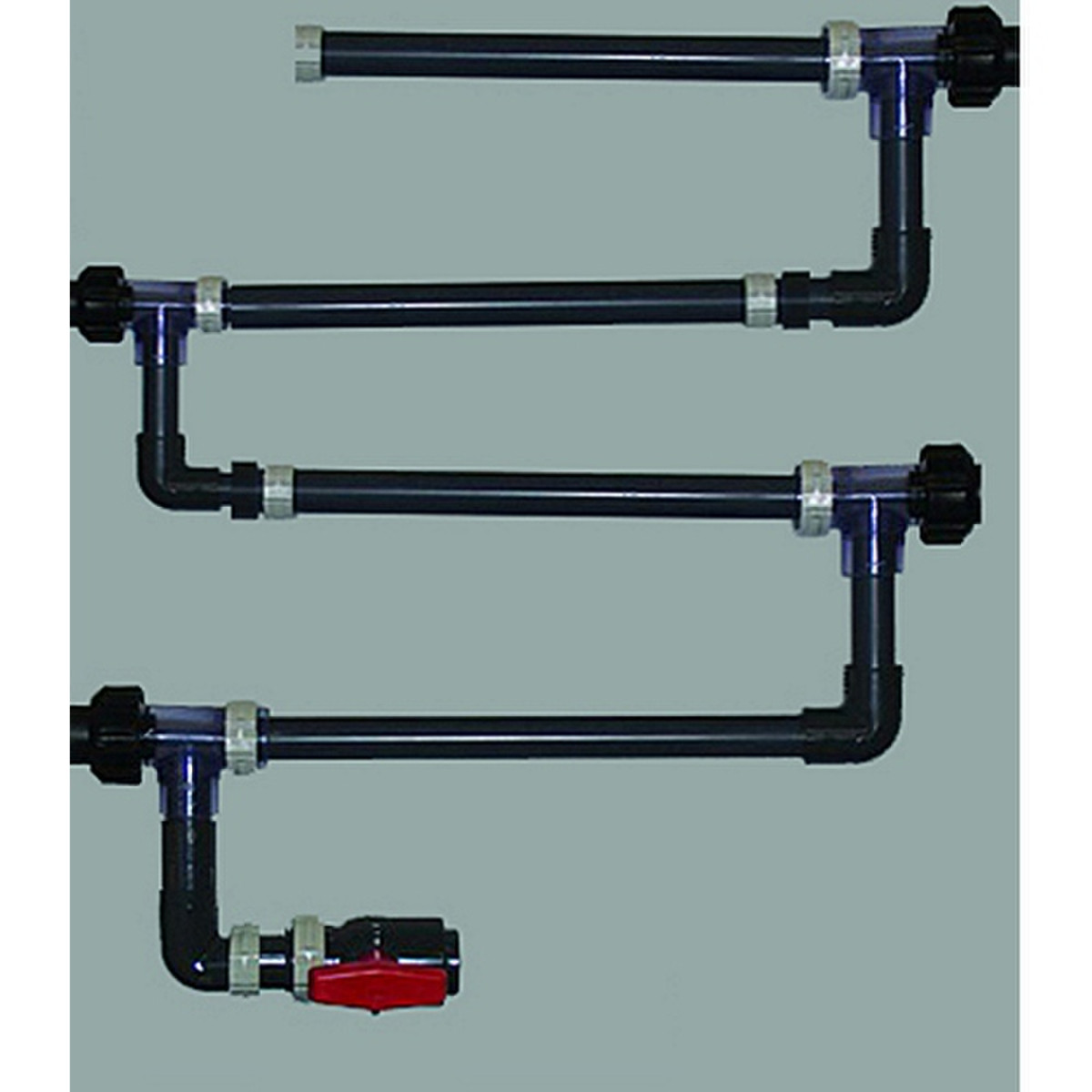

Pulsafeeder CCR40X7F5 4-Station Corrosion Coupon Rack with 3/4″ PVC | Flow Control Valve | Outlet Ball Valve | Wall Mount Panel

Pulsafeeder 4 Station Corrosion Coupon Rack (3/4″ PVC Piping) Built to ASTM Specifications Pulsafeeder’s Corrosion Coupon Rack Systems are designed to provide reliable, convenient side stream monitoring using ASTM standard coupons and are hydrostatically tested for maximum system performance exceeding industry standards. Available for cool or hot water systems, these simple and reliable coupon test stations are typically installed on the side stream of re-circulating systems to allow for controlled testing of ASTM standard coupons samples. Samples are periodically removed and examined by a laboratory in order to calculate corrosion rates and other effects such as pitting and deposition. Features Schedule 80 PVC piping assembly and components for standard applications Designed to ASTM specifications Wall mountable for easy installation Accepts ASTM test coupons Mounted on 1/4 inch Poly panel Standard Coupon Rack Systems Include: PVC coupon holder, nylon screw and nut, PVC inlet ball valve, Schedule 80 PVC piping mounted on 1/4 inch Poly. System does not include coupons – order coupons separately. This Model Includes the following Options/Modifications: Outlet ball valve Flow control valve 5 GPM
