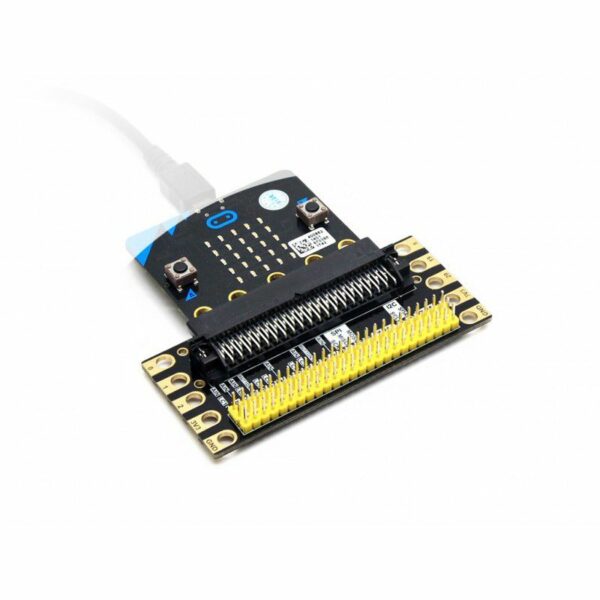

Edge Breakout for micro:bit I/O Expansion

Features: Breakout board for micro:bit Works with both the micro:bit V1 and micro:bit V2 Right angle/edge connector Breakout all useful IO pins to standard 2.54mm(100mil) pitch-to-pitch 3-way header pin Proper labeled GPIO Breakout some popular GPIO & Power to crocodile clip-friendly pads. Dimension: 82.05mm x 36.10mm Through holes diameter: 2mm Note: This is the Edge Breakout board only, the micro:bit main board is NOT INCLUDED. This Edge Breakout board works with both micro:bit V1 and micro:bit V2.This is an edge connector (right angle) expansion board designed for micro:bit, breakout the I/O pins to 2.54mm pitch pin headers for easy use.   Dimension: Packing List: 1 x Edge breakout for micro:bit board Documents: Schematic Mu download Wiki page
